EURUS III

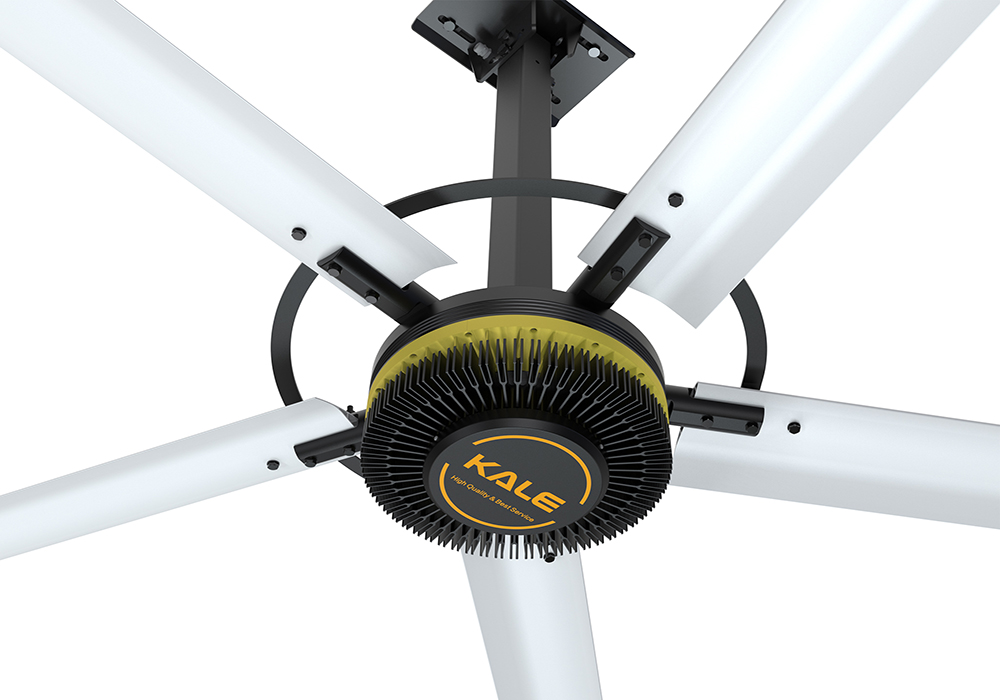

The EURUS III HVLS ceiling fan incorporates advanced PMSM (technology, boasting a maximum diameter of 7.3 meters. With a focus on comprehensive disciplines like aerodynamics, transmission dynamics, and PWM control, it efficiently circulates air, enhancing environmental comfort. Constructed with high-strength materials, such as forged steel and aircraft-grade aluminum, it ensures safety and durability. The fan features a unique dovetail power blade design, inspired by bionics, providing increased air volume, wider coverage, and improved safety. Additionally, the patented jacket-type connector and aerodynamics winglet contribute to longevity, stability, and energy efficiency. The control system, utilizing Schneider electrical sets and a German brand control cabinet, emphasizes safety and protection. The PMSM motor technology sets EURUS III apart, delivering a stable air volume surpassing market standards by 30%, earning acclaim for its performance and efficiency.
Specifications
Large Ceiling-mounted Industrial Ventilation Fan
- Five magnalium blades
- Available sizes: 7.3m, 6.1m, 5.5m, 4.9m
- Permanent Magnetic Synchronous Motor
- DANFOSS VFD controller
- Schneider electrical components
- Highly efficient & energy saving
- Area coverage up to 1500 sqm per fan*
| Size: | 24ft (7.3m) | 20ft (6.1m) | 18ft (5.5m) | 16ft (4.9m) |
| Air Volume: | 15550m³/min | 14650m³/min | 13800m³/min | 12670m³/min |
| Area Coverage: (sqm) | up to 2000 | up to 1400 | up to 1100 | up to 800 |
| Effective Height (from fan blade to floor) | 4.5m->18m | 4.0m->15m | 3.8m->12m | 3.5m->10m |
| Max Speed: | 10-54 RPM | 10- 62 RPM | 10-68 RPM | 10 – 76 RPM |
| Fan Weight: | 124kg | 120kg | 112kg | 108kg |
| Power: | 1.5kW | 1.1kW | 1.0kW | 0.8kW |
| Full Load Current: | 4.9 Amps/220V | 4.4 Amps/220V | 4.2 Amps/220V | 4.0 Amps/220V |
| Noise Level: | 38.7dB (A) | 38.7dB (A) | 38.7dB (A) | 38.7dB (A) |
Note:
1. Weight: the weight doesn’t contain control box, top connection parts etc.
2. Size: the above-mentioned product size is standard, other sizes can be customized.
3. Noise: sound level measured in a distance of 1m from the motor, electromagnetic noise is less than 40DB.
4. Packing: export standard crates.
5. Area coverage: effective area with average wind speed at 0.5m/s above, actually measured in open area.
