Aircool

AIRCOOL

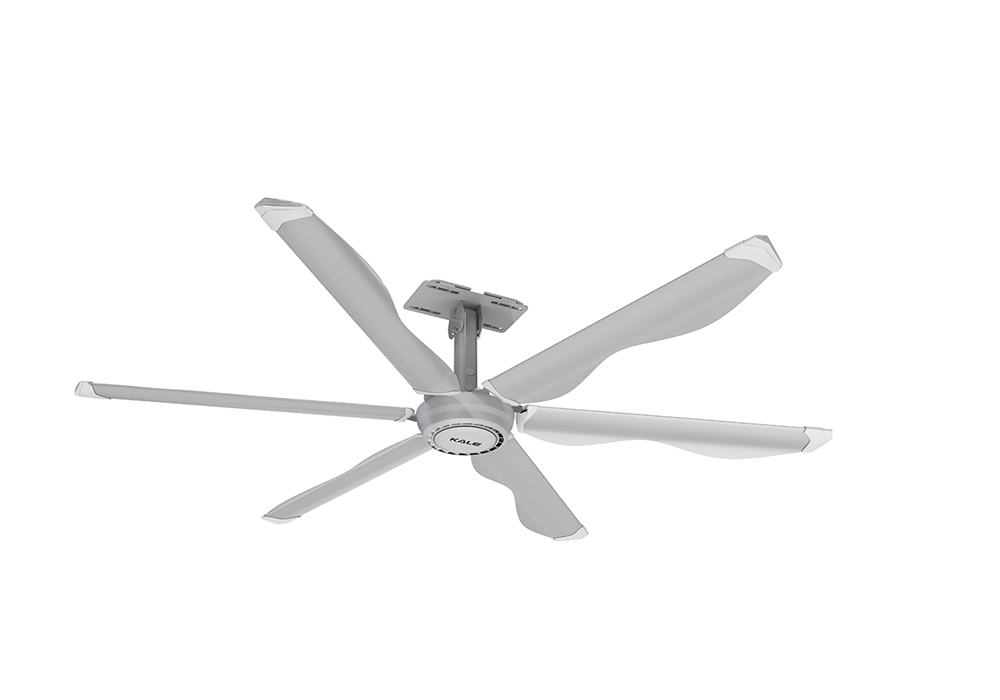

The Aircool HVLS ceiling fan is distinguished by its energy efficiency, featuring a PMSM motor, operating at a low speed of 72-150RPM. This fan surpassing traditional fans and air conditioners with its attributes of being free of maintenance, silent operation, stylish design, Night Black, Bright Silver and Snow White colors are available, energy-saving capabilities, and environmental friendliness. The Aircool utilizes a PMSM motor with optimized material performance and safety measures. The control system ensures a smooth and noiseless operation, complemented by the fan blade’s aesthetically pleasing wavy streamline design. SKF Explorer reinforced bearings enhance load capacity and reduce noise, prolonging the machine’s runtime.

Specifications

Large Ceiling-mounted Residential/Commercial Ventilation Fan

Six magnalium blades
Available sizes: 2.0m, 2.5m, 3.0m, 4.2m
Permanent Magnetic Synchronous Motor
Inverter / VFD controller
Highly efficient & energy saving
Available colors: Silver, White, Black

Model	SHVLS-D5BAA42	SHVLS-D5BAA36	SHVLS-D5BAA30	SHVLS-D5BAA25	SHVLS-D5BAA20
Size	14ft (4.2m)	12 ft (3.6 m)	10ft (3.0m)	8ft (2.5m)	6.5ft (2.0m)
Max Air Volume	7550m³/min	6560 m³/min	5100m³/min	4200m³/min	3900m³/min
Max Speed	72RPM	10-95 RPM	110RPM	130RPM	150RPM
Fan Body Weight	52KG	48KG	44KG	41KG	38KG
Power	0.35KW	0.33KW	0.2KW	0.15KW	0.13KW
Input Voltage	220V/1P	220V/1P	220V/1P	220V/1P	220V/1P
Noise Level	43dB (A)	43dB (A)	43dB (A)	43dB (A)	44dB (A)

Aircool fans are tailored for medium and small commercial spaces, offering adaptability to diverse demands. Ideal for ensuring comfort and productivity, these fans are a top choice for various establishments such as gyms, hotels, and offices.

Gyms: Maintains a cool and comfortable workout environment.

Hotels: Enhances guest comfort in common areas and rooms.

Offices: Improves air circulation for a conducive workspace.

Beyond: Versatile application in various commercial settings for optimal comfort.
